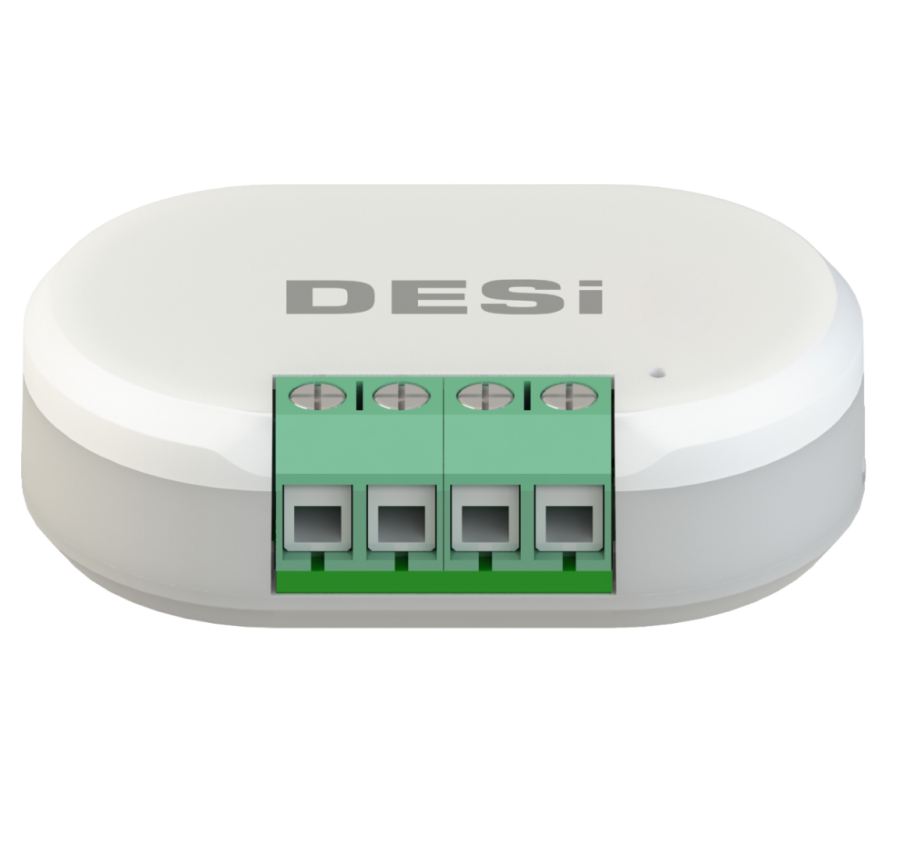

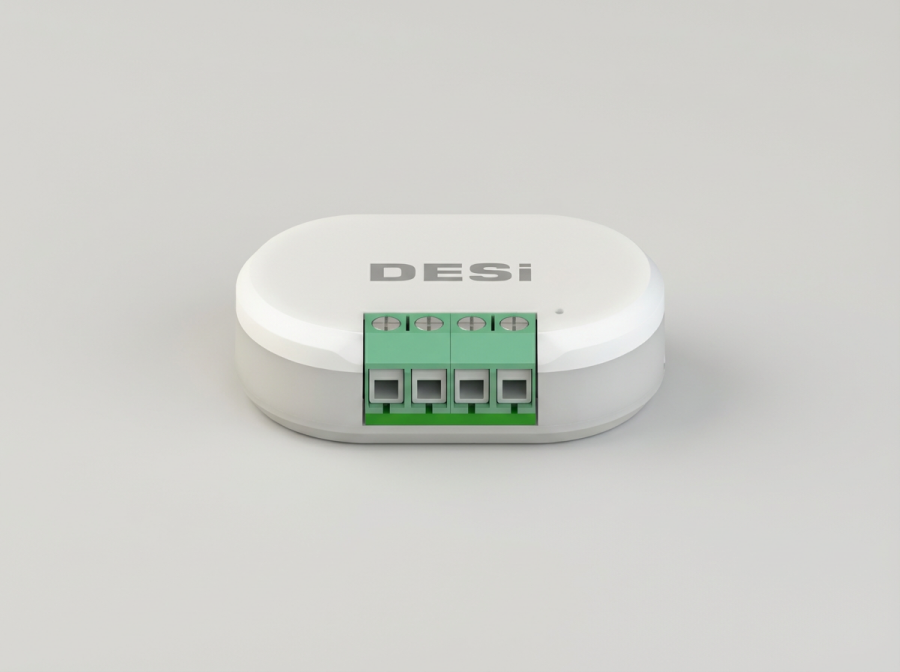

DESi Smart Home Automation Interface V3BL Utopic RX/RXe Compatible
32 EUR
Out Of Stock
Notify me when its in stockUtopic Series Accessory
Smart Home Modulefor Utopic RX / RXe / R+
Connect the dry contact output of your smart home panel to your Utopic smart lock and send lock and unlock commands with ease.
Dry Contact5–12V DC3 Trigger ModesDESi Smart15 m RangeSmart Home
5–12V DC
Power supply
3
Trigger modes
15m
Wireless range
30mA
Max consumption

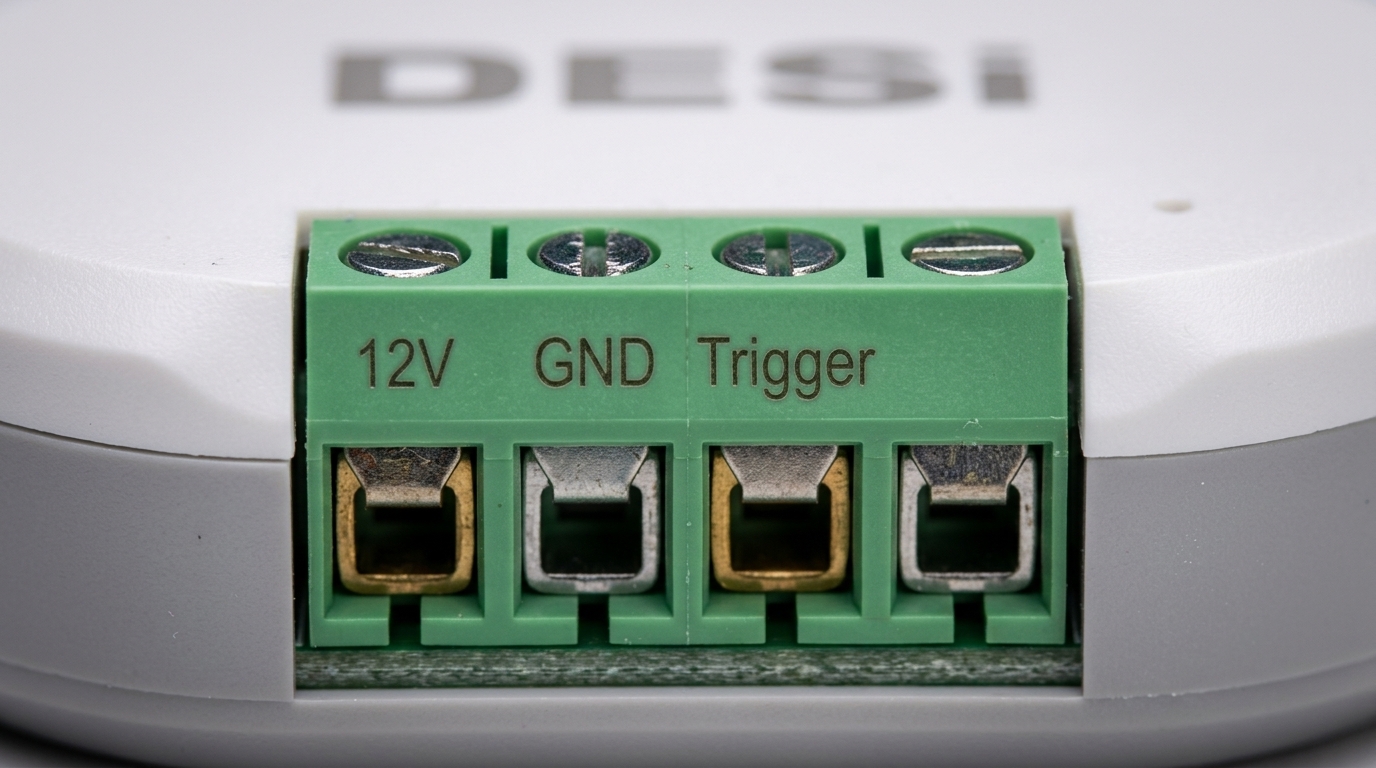

Dry Contact
Integrates with your smart home panel's dry contact output.
3 Trigger Types
Normal, Toggle and Delayed modes.
DESi Smart
Every setting is configured from the DESi Smart app.
15 m Range
Wireless control up to 15 m, depending on environment.
Swipe to explore →
Intended Use
Bring your smart lock into your smart home.
The module connects to the dry contact output of your smart home panel and sends lock and unlock commands to your Utopic smart lock. Which command is sent and which trigger type is used are set in the DESi Smart app.
Normal
A standard lock or unlock command on each trigger.
Toggle
The command alternates between lock and unlock with each trigger.
Delayed
The command is sent after the delay you set.
Technical Details
Smart home module specifications
Electrical
- Power: 5–12 V DC
- Instantaneous consumption: 30 mA max
- Operating temperature: 0°C – 40°C
- Range: up to 15 m (varies with environment)
Functions
- Trigger type Normal: standard lock/unlock
- Trigger type Toggle: alternates each trigger
- Trigger type Delayed: sent after a set delay
- All settings in the DESi Smart app
Compatibility
Compatible smart locks.
Compatible
Utopic RX-
Utopic RXe
-
Utopic R+
-
Utopic P
-
Utopic Rc
Not compatible
Utopic R-
Utopic 3
-
PiKS
WORKS WITH
Compatible DESi Smart Locks
